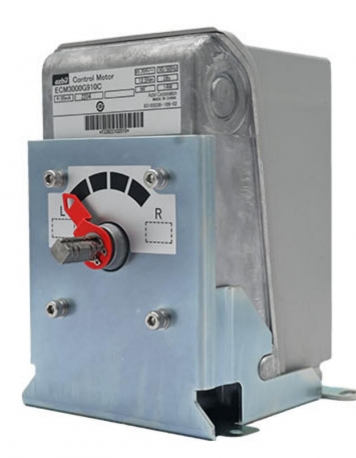

AZBIL ECM3000G910C
| Stok | Tersedia |
| Kategori | Uncategorized |
AZBIL ECM3000G910C
AZBIL ECM3000 Servo Motor Control Motor Use Burner Parts Motor Flow Control Valve
MODEL : ECM3000G910C
|
Model
|
ECM3000E01()0 1.
|
ECM3000F11()0 1.
|
ECM3000F21()0 1.
|
ECM3000G91()0 1. 2.
|
|
Rated Supply Voltage
|
24Vac 50/60Hz
|
100Vac 50/60Hz
|
200Vac 50/60Hz
|
85V-264Vac 50/60Hz
|
|
Input Signal
|
Potentiometer
|
Relay Contact
|
4-20mAdc
|
|
|
50Hz
Turnaround Time
60Hz
|
39s
|
39s
|
||
|
39s
|
||||
|
Remark
|
–
|
Feedback Potentiometer Setting
|
–
|
|
|
Auxiliary Switch (Optional)
|
2 /4 Point
|
|||
|
Envorinoment Temperature
|
-20 – +60℃
|
|||
|
Envorinoment Humidity
|
5-95%RH No Condensation
|
|||
|
Vibration Resistant
|
4.9m/s2
|
|||
|
Rotation Angle
|
90°
|
|||
|
Output Torque
|
12.5N.m
|
|||
|
Power Consumption (when in action)
|
9VA (relay contact. potentiometer type), 14W (4-20mA, 85-264Vac type), 11VA (forced opening and closing function/4-20mA/24Vac
type), 15W (forced opening and closing function/4-20mA/85- 264Vac type), high-speed motor 14VA |
|||
|
Protective Structure
|
Anti-foam type (equivalent to IP54), but only when using waterproof cable glands
|
|||
|
Material
|
Housing: Aluminum die-casting Cover: Polycarbonate resin with GF added Base: Steel plate
|
|||
|
Weight
|
about 3kg
|
|||
AZBIL ECM3000G910C
| Berat | 300 gram |
| Kondisi | Baru |
| Dilihat | 533 kali |
| Diskusi | Belum ada komentar |
